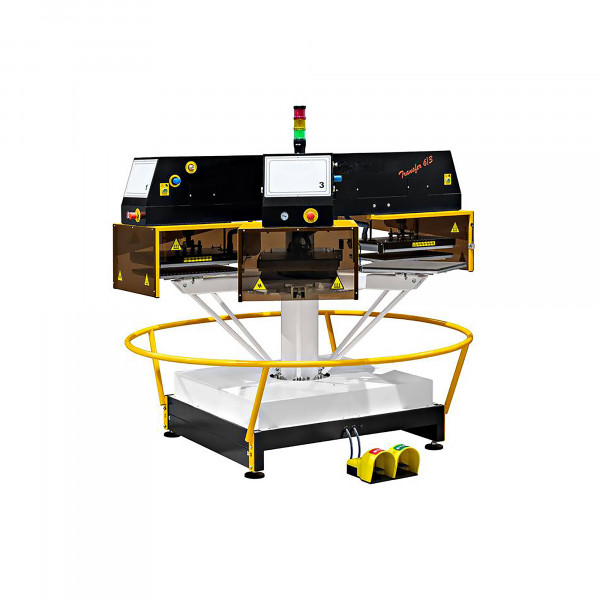

Columbia Pneumatic transfer press carousel,
with 6 work plates each 500 x 400 mm
The Columbia CLMB 6/3 pneumatic transfer press carousel has six stations or work plates and three transfer units, which can be individually adjusted (e.g. temperature or contact pressure). The standard plates in 400 x 500 mm format are ideal for are ideal for textile printing applications. Interchangeable plates in other formats extend the range of possible applications. The The carousel can be routed in both directions: This is done manually or semi-automatically by foot pedal o...
more information Prices are only visible after registration. register here!
Product description
The Columbia CLMB 6/3 pneumatic transfer press carousel has six stations or work plates and three transfer units,
which can be individually adjusted (e.g. temperature or contact pressure). The standard plates in 400 x 500 mm format are ideal for
are ideal for textile printing applications. Interchangeable plates in other formats extend the range of possible applications. The
The carousel can be routed in both directions: This is done manually or semi-automatically by foot pedal or
fully automatic. Safety factors such as light barriers and the robust design of the CLMB fulfil the requirements of industrial use.
industrial use
Technical data:
Operation: 11-inch color touchscreen
Number of worktops: 6
Standard plate: 500 x 400 mm
Number of transfer units: 3
Maximum heating plate temperature: 220 °C
Compressor tank volume: 150 liters
Power supply: 3 phases / 400 V / 50 Hz
Dimensions: (WxDxH) 2,200 x 2,200 x 1,975 mm
Weight of the unit: 890 kg
(Dimensions incl. optional feed and removal modules: (WxDxH) 3,507 x 2,084 x 1,975 mm)
Warranty: 12-month bring-in service warranty.
This module is procured especially for you and therefore cannot be canceled or returned.
Options and functions:
- Individual temperature control for each transfer head
- Individual timer control for each transfer head
- Individual pressure control for each transfer head; digital PLC control
- Three operating options: Manual, semi-automatic or fully automatic
- Emergency stop on each transfer head
- Plate base with silicone rubber (10 mm thick)
- Option to change the plate for different sizes
- Light barrier for operator safety
- Possibility to move in both directions of rotation
- 2 x sets of foot pedals with memory for easy 2-operator working mode
- Pallets are moved by an electric drive system
Characteristics
| Work surface/transfer surface: | 500 x 400 mm |
| Electricity: | 3 Phasen / 400 V / 50 Hz |
| Max. temperature: | 220 CELSIUS |
| Dimension: | 2.200 x 2.200 x 1.975 mm |
| Weight approx.: | 890 kg |
