DTF Direct to Film printer XP600-Pro / completely refurbished
Prices are only visible after registration.
ART-NR:
DTF-XP-DS-G01
Product Information
Max. Media width: 600 mm, (print width approx. up to 585 mm)
Max. Print resolution: 2,400 dpi
Max. Print output: 15 m² / hour (design), ~6 m² / hr (production)
Print output production: ~5 m² / hr,
Printhead technology: 2x Epson i3200-A1
Color/Channels: 1. head: C, M, Y, K / 2. head: 4x W
Printhead distance: 1,5 - 3,5 mm
Ink technology: Water-based pigment ink
Ink supply: Ink tank system incl. level indicator
White circulation: Yes
Power supply: 220 V AC
Power consumption: 1,500 watts
Operating system required: Windows 8, 10, 11 (64-Bit-Version)
Interface: dedicated Ethernet port
Dimensions (L x W x H):
Pressure bridge only: 525 x 1,330 x 435 mm
incl. stand: 750 x 1,330 x 1,415 mm
Weight: approx. 150 kg
Required operating range: 20-25°C,
40 - 60% rel. humidity, non-condensing
Scope of delivery:
Incl. operating instructions
Incl. ink level indicator
Incl. circulation system (colour white)
Incl. mains plug, USB flash, LAN cable, cleaning cloths, cleaning sticks
=========================
Completely refurbished used system, ink system flushed (currently not filled with ink), originally filled with Dupont ink
Condition:
- Visual: good to very good condition, minimal contamination from ink residue, minimal dents or scratches possible – see photos (photos of machine available)
- Technical: flawless, functional
Serial number: 2401-1032
First sale: 22 May 2024
Ink type: Dupont ink
Period of use: 13 months (May 2024 – June 2025)
Printing performance to date:
Printing statistics:
- 0
The headboard has probably been replaced.
Statistical information:
- Total time: 12,750 days
- Total number of runs: 1,683,249
- Printing length: 3,633.85 m
=========================
Warranty:
Bring-in service warranty.
The warranty period is 6 months for electronics and mechanics and 2 months for print heads.
Other ink-carrying parts, such as capping stations, dampers, pumps or hose systems, are excluded.
The guarantee and warranty claims become invalid if consumables such as inks
e.g. inks, cleaning agents etc. are used that are not intended for use or application in connection with the printing system supplied by Print Equipment.
use in connection with the printing system supplied by us, or if the printing system is not operated
system supplied by us or if the printing system is not operated in the required operating
operated.

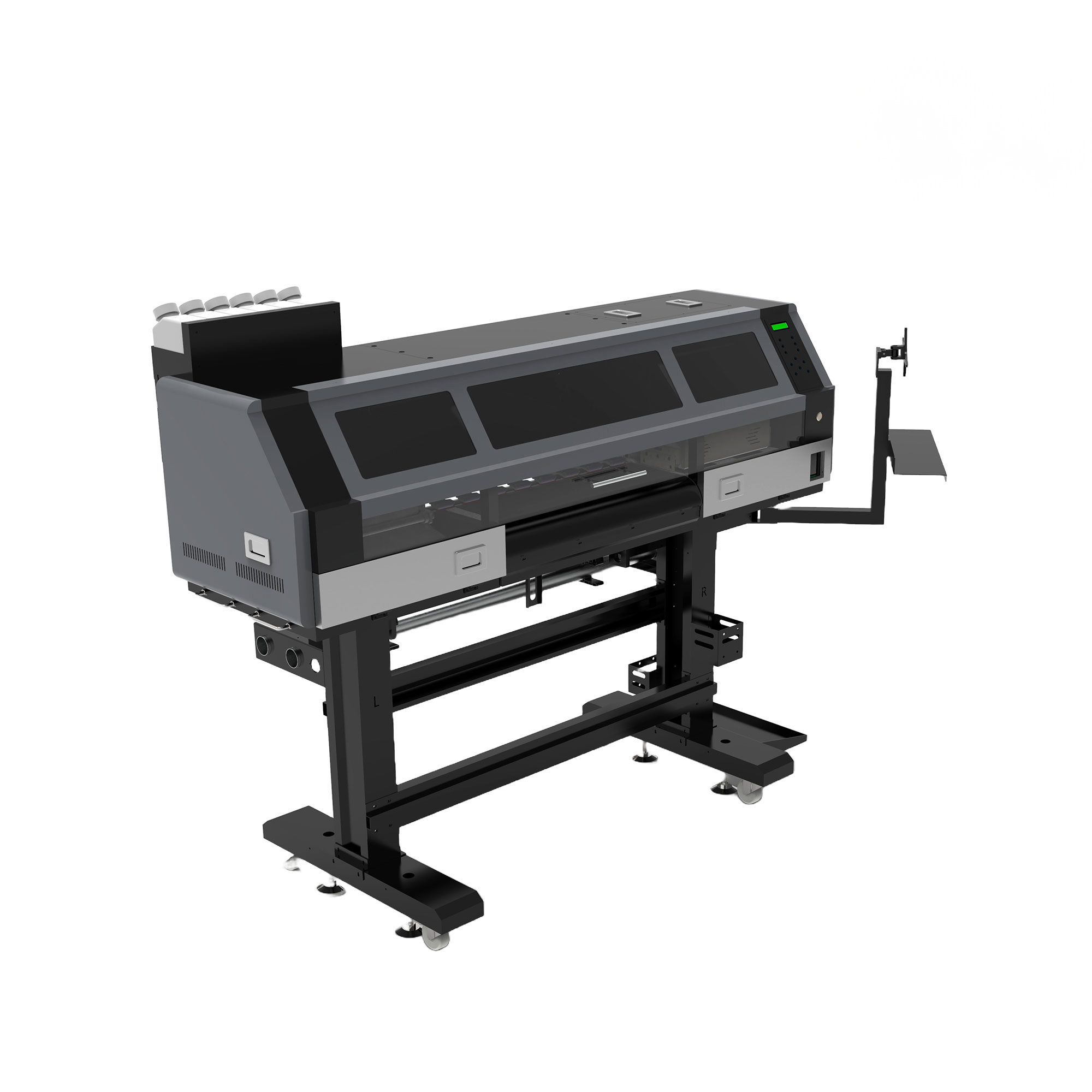

Note: Image for illustration purposes only. The photo shows a symbolic image of the new device. Original pictures of the actual demo or used unit are available on request. DTF-XP-DS-G01
