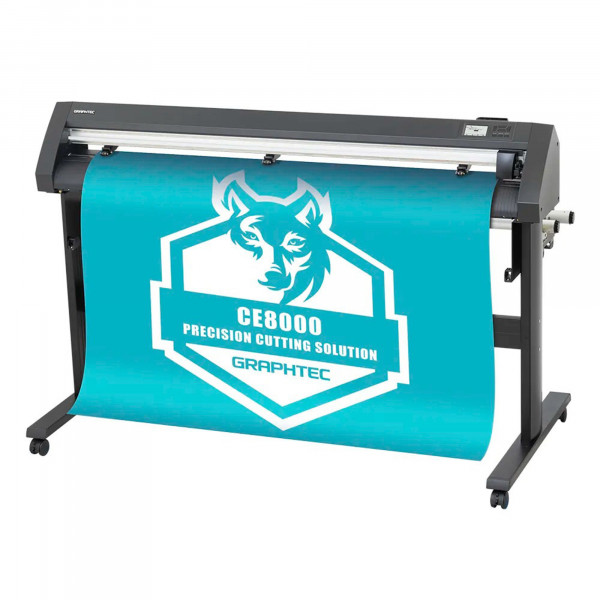

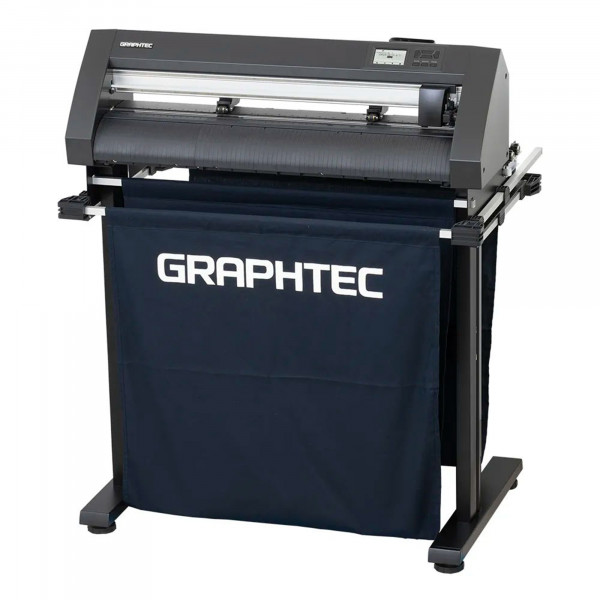

Graphtec cutting plotter-standing unit size 60 cm
Prices are only visible after registration.
ART-NR:
CE8000-60SP
Produktinformationen
Configuration: MicroGritroll™ cutting plotter with digital servo drive
Technical data:
- Max. Cutting area: 603 mm x 50 m
- Range for guaranteed cutting accuracy: 583 mm x 2 m, (583 mm x 5 m)
- Min. media width: mm
- Max. Media width: 712 mm
- Max. Media weight: 9 kg
- Max. Cutting speed: 900mm/s (45°)
- Max. Acceleration: 21.2m/s² (45°)
- Max. Cutting force: 4.41N (450g)
- Smallest letter size approx. 3 mm alphanumeric (depending on font and medium)
- Mechanical resolution: 0.005 mm
- Controllable resolution: GP-GL: 0.1/0.05/0.025/0.01 HP-GL™: 0.025 mm
- Repeat accuracy: max. 0.1 mm / 2 m (without expansion or contraction of the medium)
- Number of pressure rollers: 2
- Number of usable tools: 1
- Knives: Super steel
- Pens: Oil-based biros, water-based felt-tip pen
- Media types: Self-adhesive vinyl film, fluorescent film, Amberlith™, Rubylith™, window protection and tinting film, highly reflective film, paint protection film up to 0.25 mm thick, sandblasting film up to 1 mm thick, etc.
- Display: LCD with backlight (240 pt x 128 pt), supports 10 languages
- Interfaces: WLAN, USB 2.0 (Full Speed), Ethernet 10BASE-T/100BASE-TX
- Memory: 2 MB
- Command languages: GP-GL / HP-GL™ emulation (selectable via menu or command or automatic selection)
- Compatible operating systems: Windows 11/10 Mac OS X 10.13 ~ 10.14
- Supported software: Graphtec Studio 2 (Windows), Graphtec Studio 2 (Mac), Cutting Master 5, Windows driver
- Power supply: AC100-120 V, AC200-240 V, 50 / 60 Hz
- Power consumption: Max. 140 W
- Operating conditions: Temperature: +10º C to +35º C / Humidity: 35 % to 75 % (non-condensing)
- Operating conditions for gar. Accuracy: Temperature: +16º C to +32º Humidity: 35 % to 70 % (non-condensing)
- Dimensions (W x D x H) (incl. collection basket and stand): approx. 903 x 582 x 1076 mm
- Weight (with stand): approx. 21 kg
- 24 months manufacturer's warranty
Scope of delivery:
Blade holder PHP33-CB09N-HS
Blade CB09-U 45° / 0.9 mm
WLAN module
Magnetic tool holder
Stand for CE8000-60 CE8000-60SP
Technical data:
- Max. Cutting area: 603 mm x 50 m
- Range for guaranteed cutting accuracy: 583 mm x 2 m, (583 mm x 5 m)
- Min. media width: mm
- Max. Media width: 712 mm
- Max. Media weight: 9 kg
- Max. Cutting speed: 900mm/s (45°)
- Max. Acceleration: 21.2m/s² (45°)
- Max. Cutting force: 4.41N (450g)
- Smallest letter size approx. 3 mm alphanumeric (depending on font and medium)
- Mechanical resolution: 0.005 mm
- Controllable resolution: GP-GL: 0.1/0.05/0.025/0.01 HP-GL™: 0.025 mm
- Repeat accuracy: max. 0.1 mm / 2 m (without expansion or contraction of the medium)
- Number of pressure rollers: 2
- Number of usable tools: 1
- Knives: Super steel
- Pens: Oil-based biros, water-based felt-tip pen
- Media types: Self-adhesive vinyl film, fluorescent film, Amberlith™, Rubylith™, window protection and tinting film, highly reflective film, paint protection film up to 0.25 mm thick, sandblasting film up to 1 mm thick, etc.
- Display: LCD with backlight (240 pt x 128 pt), supports 10 languages
- Interfaces: WLAN, USB 2.0 (Full Speed), Ethernet 10BASE-T/100BASE-TX
- Memory: 2 MB
- Command languages: GP-GL / HP-GL™ emulation (selectable via menu or command or automatic selection)
- Compatible operating systems: Windows 11/10 Mac OS X 10.13 ~ 10.14
- Supported software: Graphtec Studio 2 (Windows), Graphtec Studio 2 (Mac), Cutting Master 5, Windows driver
- Power supply: AC100-120 V, AC200-240 V, 50 / 60 Hz
- Power consumption: Max. 140 W
- Operating conditions: Temperature: +10º C to +35º C / Humidity: 35 % to 75 % (non-condensing)
- Operating conditions for gar. Accuracy: Temperature: +16º C to +32º Humidity: 35 % to 70 % (non-condensing)
- Dimensions (W x D x H) (incl. collection basket and stand): approx. 903 x 582 x 1076 mm
- Weight (with stand): approx. 21 kg
- 24 months manufacturer's warranty
Scope of delivery:
Blade holder PHP33-CB09N-HS
Blade CB09-U 45° / 0.9 mm
WLAN module
Magnetic tool holder
Stand for CE8000-60 CE8000-60SP
Characteristics
| Dimension: | 903 x 582 x 1076 mm |
|---|---|
| Including: | Magnetischer Werkzeughalter, Messer CB09-U 45° / 0,9 mm, Messerhalter PHP33-CB09N-HS, Standfuß für CE8000-60, WLAN-Modul |
| Media width: | 712 mm |
| Warranty: | 24 month |
| Weight approx.: | 21 kg |
