UV-DTF printing system with 3 print heads max. 295 mm print width
Prices are only visible after registration.
ART-NR:
UV-ET-DS-300-3HD
Produktinformationen

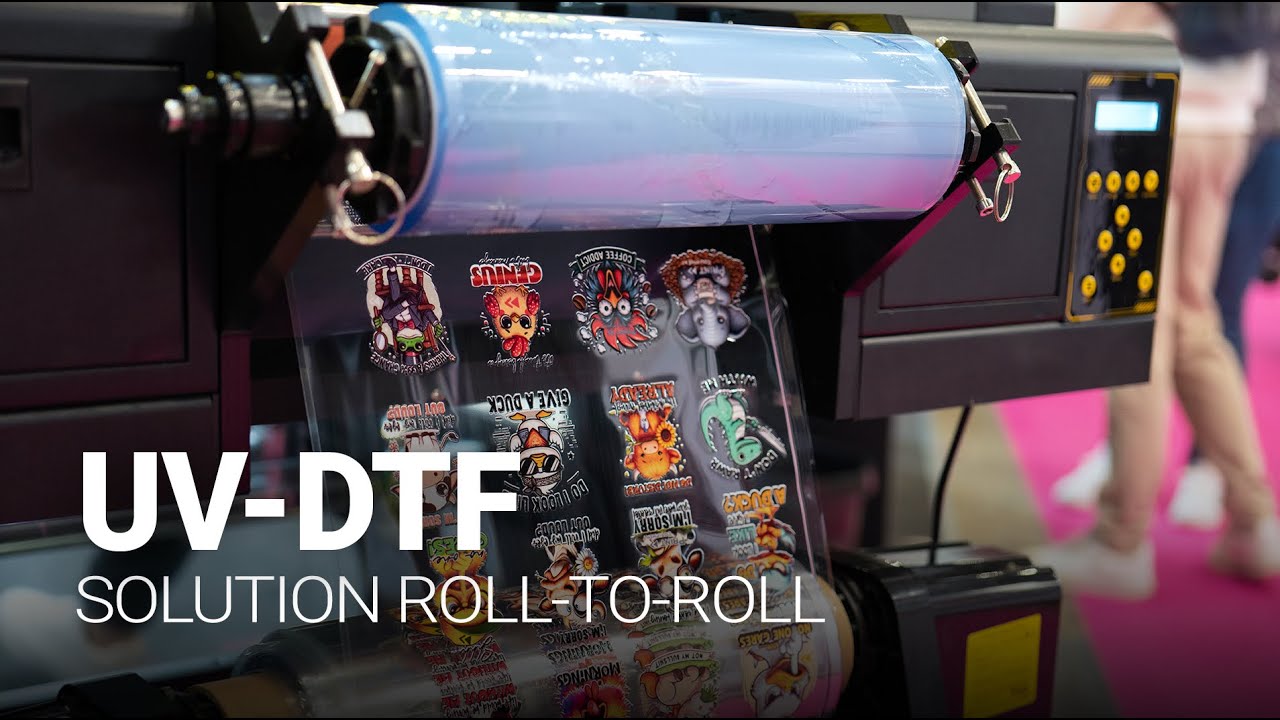

UV DTF transfers (often also referred to as RubOn) are an innovative solution for creating ‘stickers’.
With the UV-DTF printing system UV-ET-DS-300-3HD (sister model of the proven XP600 series)
you can produce transfers that can be applied to almost any solid surface, such as glass, ceramics, wood, metal, plastic, natural stone and much more.
Even items that cannot be printed using classic UV direct printing can now be printed using UV DTF printing – including items that are (heavily) curved, conical, heavily reflective, highly magnetic or whose design does not allow direct printing (e.g. printing in indentations).
With UV DTF roll printing, the printing is done on the A film (carrier) – and is combined with the B film (laminate) during production. This eliminates the need for manual laminating and the labels can be processed immediately after printing.
Due to the ink technology, we do not recommend applications in the textile clothing industry; the resistance of the DTF transfers depends on the substrate. We generally recommend that you carry out your own tests for the purpose of adhesion and resistance!
Max. Media width: 300 mm, (print width approx. up to 295 mm)
Print head technology: 3x Epson F1080-A1
Max. Print resolution: 180 npi / row 360 npi/2 rows
Print output: Fine (720x1440): 0.88 m² - 2.94 running metres/h. Production (720x729): 1.76 m² - 5.88 running metres/h
Colour configuration / channels: 1st head 6xW / 2nd head CCMMYK / 3rd head 6x V
Ink technology: UV ink
Ink supply: Ink tank system, 500 ml
White circulation: Yes
Power supply: 230 V AC
Power consumption: 500 watts
Required operating system: Windows 10, 11
Interface: LAN
Dimensions (L x W x H): 980 x 940 x 1,224 mm
Packaging dimensions: (L x W x H): 1,450 x 900 x 711 mm
Weight: 145 kg (185 kg incl. packaging)
Required operating range: 20-25°C, 40 - 60% rel. humidity, non-condensing
Scope of delivery:
Incl. operating instructions
Incl. mains plug, LAN cable, cleaning cloths, cleaning sticks
Bring-in service guarantee:
The warranty period is 12 months for electronics and mechanics and 4 months for print heads. Other ink-carrying parts such as the capping station, wiper, damper, pumps or hose system are excluded.
Guarantee and warranty claims shall lapse if consumables such as inks, cleaning agents etc. are used which have not been approved by Print Equipment for use in conjunction with the printing system supplied by us.
in connection with the printing system supplied by us. UV-ET-DS-300-3HD
With the UV-DTF printing system UV-ET-DS-300-3HD (sister model of the proven XP600 series)
you can produce transfers that can be applied to almost any solid surface, such as glass, ceramics, wood, metal, plastic, natural stone and much more.
Even items that cannot be printed using classic UV direct printing can now be printed using UV DTF printing – including items that are (heavily) curved, conical, heavily reflective, highly magnetic or whose design does not allow direct printing (e.g. printing in indentations).
With UV DTF roll printing, the printing is done on the A film (carrier) – and is combined with the B film (laminate) during production. This eliminates the need for manual laminating and the labels can be processed immediately after printing.
Due to the ink technology, we do not recommend applications in the textile clothing industry; the resistance of the DTF transfers depends on the substrate. We generally recommend that you carry out your own tests for the purpose of adhesion and resistance!
Max. Media width: 300 mm, (print width approx. up to 295 mm)
Print head technology: 3x Epson F1080-A1
Max. Print resolution: 180 npi / row 360 npi/2 rows
Print output: Fine (720x1440): 0.88 m² - 2.94 running metres/h. Production (720x729): 1.76 m² - 5.88 running metres/h
Colour configuration / channels: 1st head 6xW / 2nd head CCMMYK / 3rd head 6x V
Ink technology: UV ink
Ink supply: Ink tank system, 500 ml
White circulation: Yes
Power supply: 230 V AC
Power consumption: 500 watts
Required operating system: Windows 10, 11
Interface: LAN
Dimensions (L x W x H): 980 x 940 x 1,224 mm
Packaging dimensions: (L x W x H): 1,450 x 900 x 711 mm
Weight: 145 kg (185 kg incl. packaging)
Required operating range: 20-25°C, 40 - 60% rel. humidity, non-condensing
Scope of delivery:
Incl. operating instructions
Incl. mains plug, LAN cable, cleaning cloths, cleaning sticks
Bring-in service guarantee:
The warranty period is 12 months for electronics and mechanics and 4 months for print heads. Other ink-carrying parts such as the capping station, wiper, damper, pumps or hose system are excluded.
Guarantee and warranty claims shall lapse if consumables such as inks, cleaning agents etc. are used which have not been approved by Print Equipment for use in conjunction with the printing system supplied by us.
in connection with the printing system supplied by us. UV-ET-DS-300-3HD
Characteristics
| Betriebssystem: | Windows 7, 10, 11 (64-bit-System) |
|---|---|
| Dimension: | 980 x 940 x 1224 mm |
| Ink: | Hard LED UV |
| Ink capacity: | 1000 ml |
| Ink supply: | Bottle |
| Interface: | GB-Ethernet (1000BASE-T) |
| Max. Print output: | Fine (720x1440): 0.88 m² - 2.94 running metres/h. Production (720x729): 1.76 m² - 5.88 running metres/h |
| Max. print resolution: | 720 x 4.800 dpi |
| Media width: | 310 mm |
| Power: | 500 W |
| Power supply: | 230 V AC |
| Printable: | Printer |
| Printhead technology: | 3x Epson F1080-A1 |
| Print technology: | UV- DTF |
| Software: | Print Suite |
| Warranty: | 4 month for the printhead, Bring-in service: 12 months on electronics and mechanics, 4 months on print heads |
| Weight approx.: | 145 kg |
