Large format pneumatic transfer press TT-812-K, transfer surface 125 x 85 cm
transfer surface 125 x 85 cm
Prices are only visible after registration.
ART-NR:
TT-812-K
Product Information
This device optimally supports your business. Let us make you an individual non-binding offer.

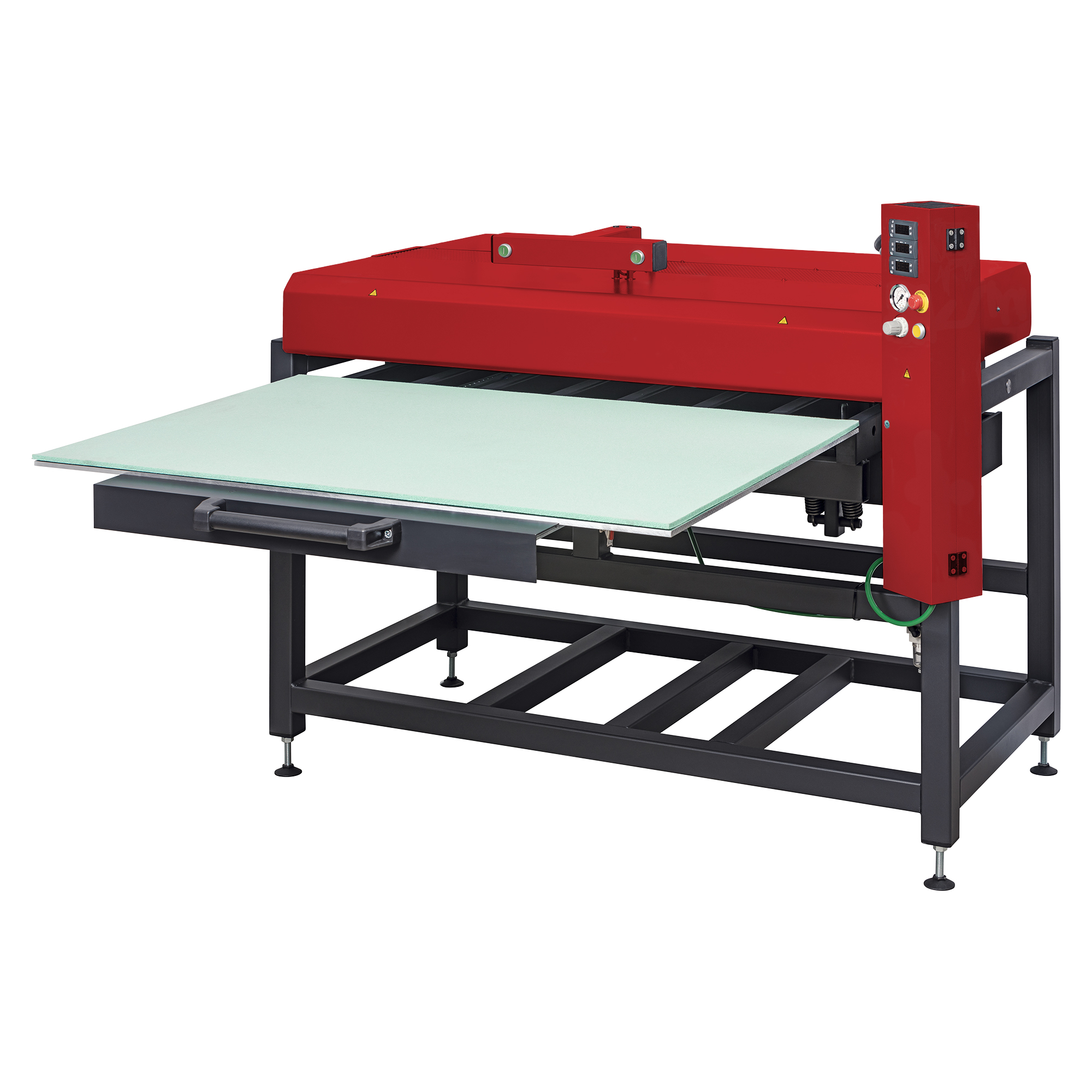

Pneumatic large format transfer press with smooth-running pull-out drawer.The TT-812-K has 2 heating zones for precise temperature control and distribution. 2 large pressure elements produce a high and very even contact pressure.
The TT-812-K is also characterized by a simple and ergonomic operation.
A sturdy undercarriage for setting the working height is included.
The TT-812-K can be moved by means of a lift truck.
The TT-812-K is delivered ready for connection and can be put into operation immediately. The TT-812-K is MADE IN GERMANY and absolutely maintenance-free.
Technical data TT-812-K:
- Working surface: 125x85 cm
of which usable for textile products: 123x83 cm; for solid products: 120x80 cm
- Max. material thickness: 30 mm
- Dimensions closed (WxHxD): 133x134x127 cm
- Weight: 360 kg
- Electrical connection: 400 V / 50 Hz / 15 A
- Connection cable with 16A CEKON (CEE) power plug
- Heating power: 10 kW
- Max. temperature: 210 ° C
- Max. printing time: 9,999 sec.
- Max. compressive force at 6 bar: 65 kN / 6.5 t
- Max. surface pressure at 6 bar: 6.0 N / cm² / 600 gr / cm²
- Air consumption at 6 bar per operation: 32 NL / stroke
- Recommended compressor: FKOMP-320-Pro
- Recommended compressor size: Power: min. 8 bar / suction capacity: min. 80 NL / min. / Container volume: min. 100 l

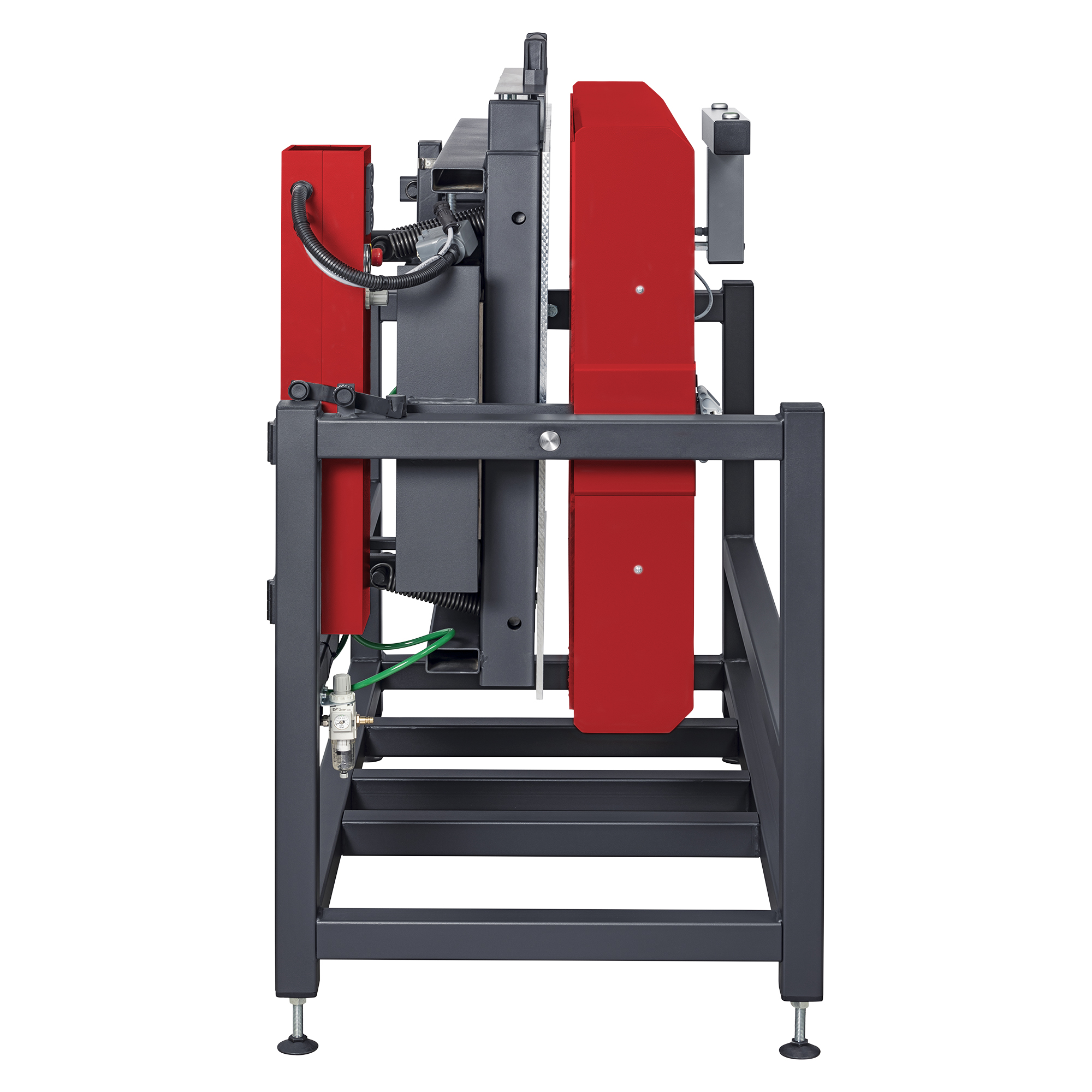

The transfer press TT-812-K has at its disposal a folding mechanism for vertical positioning of the heating and work plates. This saves space during shipping and facilitates easier transport through tight spaces such as narrow doors.
Matching silicone foam mat VOR-125x85 TT-812-K
